지속적인 경영혁신과 연구개발로 국가산업발전에 기여

지속적인 경영혁신을 바탕으로 계획적인 연구개발과 과감한 투자를 통해 지역과 국가 산업발전에
기여할 수 있는 기업이 되기 위한 다양한 노력과 시도들을 경주해 오고 있습니다.

AMP

공급범위 및 절차
공급범위 및 절차
상세 공급 내역

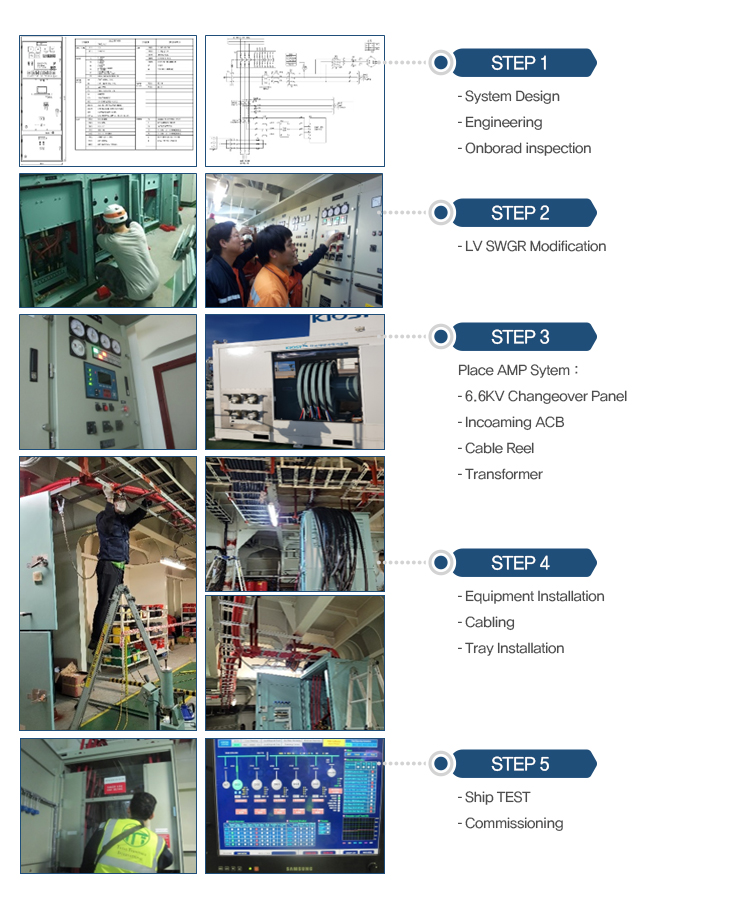

  • SUPPLY SCOPE & WORK FLOW
    Full Package AMP
    Retrofin Project
    - System Design
    - Product supply
    - Installation
    - Commissiong
    - Maintenance
  • SUPPLY SCOPE & WORK FLOW
    6.6KV Shore
    connection
    switch gear
    2 or 3 functional unit of AMP HVSB
    - Rated V --------- 6.6KV
    - Rated Capacity --- 2.5MVA
    - Rated Frequency -- 60Hz
    - Rated Short tiom withstand V
    ----------------- 25KA / 1sec
    - Degree of protection – IP41
  • SUPPLY SCOPE & WORK FLOW
    Transformer
    BASIC DATA - Phase, Frequency --- 3ph, 60Hz
    - Rated Capacity ----- 2.5MVA
    - Rated Voltage ------ 6600/440V
    - Temperature class -- F
    - Degree of protection - IP23
    - Winding material ---- Aluminum
  • SUPPLY SCOPE & WORK FLOW
    Cable Reel
    - Electric motor with encoder
    - Cable.Guide roller
    - Remote Control
    - Transformer fiber optical
    Electrical Motor with encoder
    -------- 3.7KW, 440V, 60Hz, 4P
    Transmitter fiber optical
    - Multi Mode, 12core, 40turn
    - Degree of protection – IP55

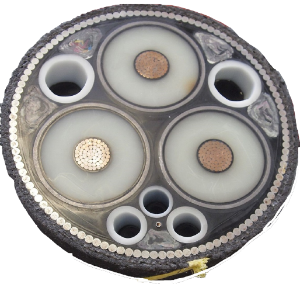

    - Reeling cable ------- 185, 120sq
    - Plug & Socket – Protection / 3PX5
PROJECT 요구사항
  • 1. Electrical wiring diagram
  • 2. Electric load analysis
  • 3. Maker’s drawing of the Main Switch Board
  • 4. GA of the vessel ( GA of Engine room, Engine control room, streering gear room inclusive)
  • 5. Updated shot circuit current calculation
  • 6. Information whether to use a port reel or rees(s) on board

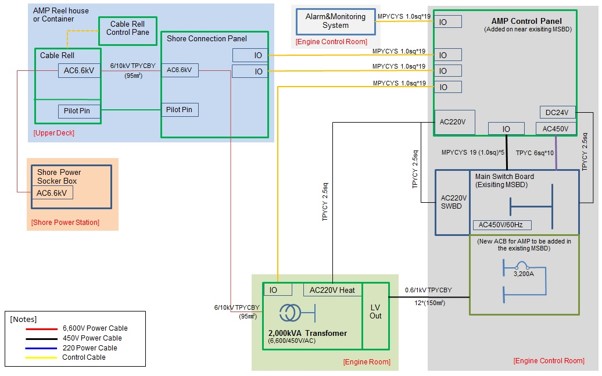

  • 6-A Cable Reel ON BOARD
    Cable Reel ON BOARD

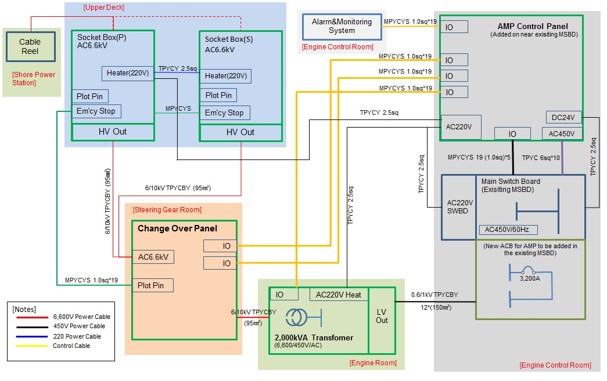

  • 6-B Using Port Cable Reel
    Using Port Cable Reel
PROJECT 요구사항
제품 구성품
Equipment Capacity
Cable Reel 185sq,120sq
Transformer 3Ph, 450V/6600V, 4500KVA, F CLASS
6.6KV Switch Board 2.5MVA, AC6.6KV, 60Hz, 25KA/1sec
패키지 AMP TYPES
Container Types Equipment configuration Type features
Type 1(IP56) Type 1(IP56) Cable reel+TR+6.6 SWBD Fully equipped
Type 2(IP56) Type 2(IP56) Cable reel+6.6 SWBD Requires options
Type 3(IP56) Type 3(IP56) Cable reel Requires options
패키지 AMP TYPES
ITEM Port reel AMP Reel
Shelter
AMP Reel
No Shelter
Remark
Shelter N Y N IP42 for shelter
Cable Reel N Y Y
Socket BOX Y N N For port reel use only
HV SWGR Y Y Y
Transformer Y Y Y
LV IN Panel Y Y Y
CABLE REEL 내역
Items LUXCO Cavotec Remarks
Motor controller Inverter type Hydraulic type Inverter type enables More precise control of tensioning the cable
Cable LS Cable LS Cable Partnered marker 120sq * 3c + 35 * 2c + 2.5sq *10c + 12Fo * 40m ~ 50m
Socket & Plug Proconent(FRA)
The original standard
Cavotec All standard
Other Than Reel - MSBD Modification
- HV Panel, TR unit supply
- Installation Commissioning
- Mainly Cable Reel
- Other equipment
by agents, reps
LUXCO : Full package or single unit equipment & service, based on customer requests
변압기

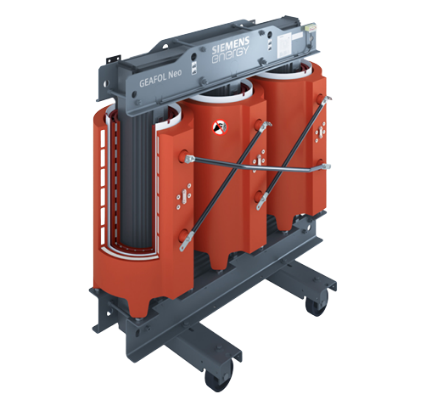

Cast Resin TR
Cast Resin TR
Cast Resin TR
Capacity UP to 15MVA
Rated Voltage UP to 36KV
Ph. Frequency 3PH, 50/60Hz
Enclosure IP 00 up to IP44
Cooling AN, AF, Water Cooling
Insulation Materials Epoxy Resin, Inorganic filler
Winding Materials AL. Option CU
Standards IEC 60076, ANSI C57, NEMA ST-20 & all ship’s classification
Dry Type TR
Dry Type TR
Dry Type TR
Capacity UP to 5MVA
Rated Voltage UP to 11KV
Insulation Materials Varnish, Nomex, Mica
Basic Insulation Air Natual(AN)
Winding Materials CU standard, AL Option
Standards IEC 60076, ANSI C57. 12. 01, NEMA ST-20, KEPIC, CE

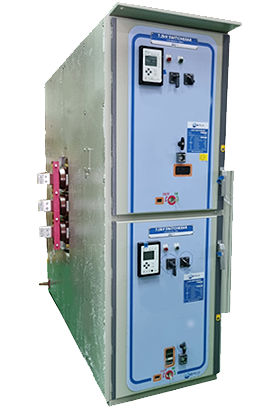

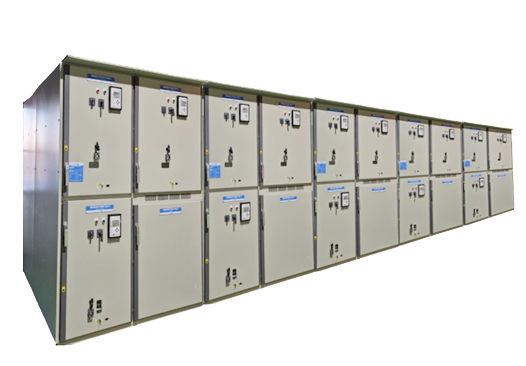

고압배전반
고압배전반 img
고압배전반 img2
- 운전의 편의, 안전성을 더한
- 사고 방지 및 아크 배기 및 보호장치
- 공간 활용성을 높인 배전반

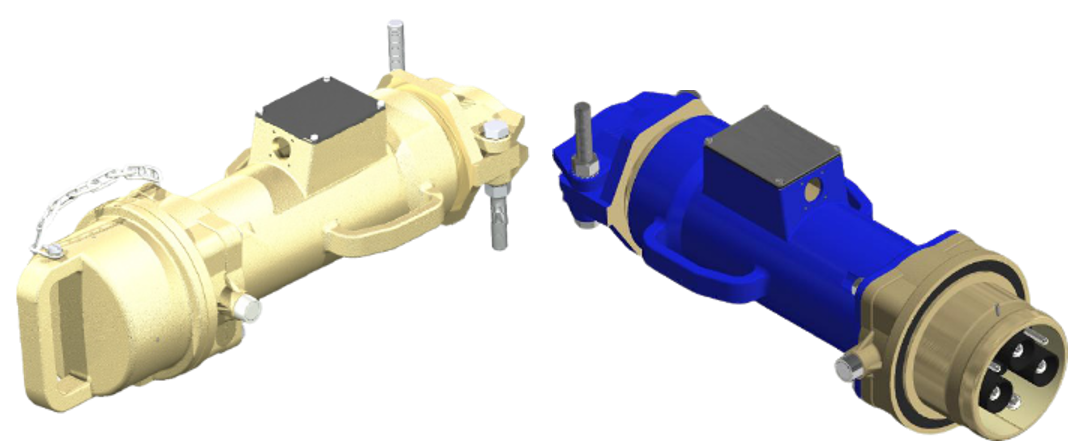

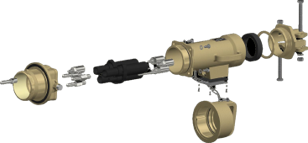

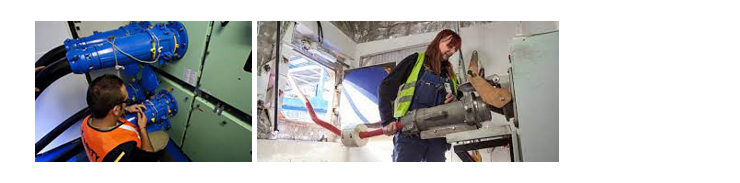

AMP PLUG
AMP PLUG img AMP PLUG img2 Mechanical Characteristics
- Marine grade housing, low magnesium & copper free alloy
- Stainless steel fastening
- Alloy copper, silver plated contact
- Protection index between plug & socket IP67
- Pilot contact electrical interlocking
Electrical Characteristics
- Max insulation voltage -------- 7.2KV
- AC withsatand with HD 629.1.S2 –17.1KV
- Max current rating ----------- 350A
- Contacts resistance ---------- 1mΩ
- No. of poles ----------------- 3P+E+3P max
- Cable terminal --------------- Crimp or solder
- Potical fiber connection

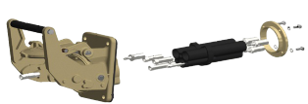

AMP SOCKET
AMP SOCKET img AMP SOCKET img2 Mechanical Characteristics
- Marine grade housing, low magnesium & copper free alloy
- Stainless steel fastening
- Alloy copper, silver plated contact
- Protection index between plug & socket IP67
- Pilot contact electrical interlocking
Electrical Characteristics
- Max insulation voltage -------- 7.2KV
- AC withsatand with HD 629.1.S2 –17.1KV
- Max current rating ----------- 350A
- Contacts resistance ---------- 1mΩ
- No. of poles ----------------- 3P+E+3P max
- Cable terminal --------------- Crimp or solder
- High voltage shore connection system with IEC 60092-510
- Shore connection with IEC Norm 80005-1/FDIS

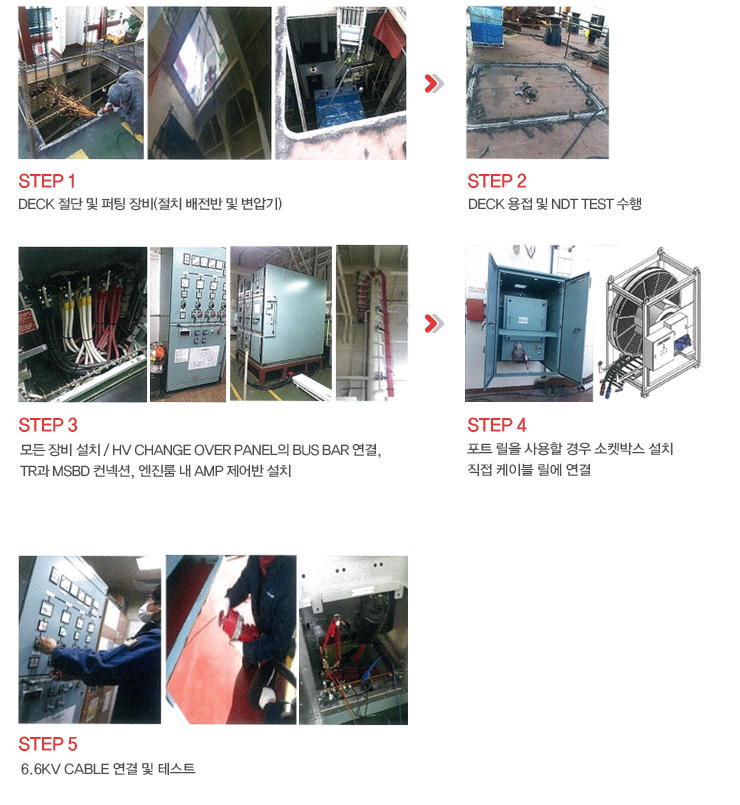

설치 요구 사항
설치 요구 사항
