- 1Generally it is protected from the system paragraph accident, it is comprising the Interlock System.
- 2Customer upon request main switchboard generator and parallel driving i possible, it can become design and manufacture.

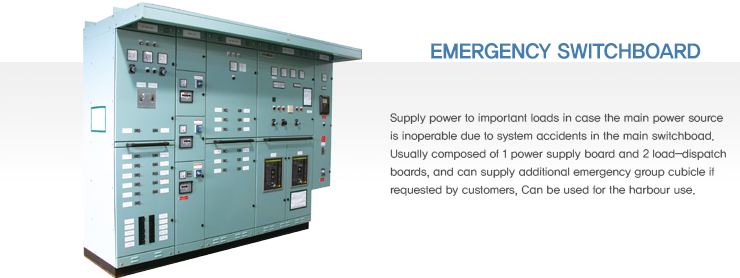

- 3The enclosure size of the emergency distributing board is determined according to number of feeder and feeder capacity.
- 4If reverse order to facilitate the maintenance is to the rear of a half and half torok accessible.
|Type||Totally-enclosed, dead-front, Floor standing multi-cubicle|
|Rated Voltage||500V AC (up to 690V AC, Option)|
|Rated Current||9000A MAX(withstand current:300kA,Asym.Peak)|
|Frame Work||Formed sheet steel or substantial box-frame|
|Access||Front and rear (Front only, Option)|
|Handrail||Front and rear|
|Power line inlet||Bottom or upper part of rear (top part,option)|
