- 1Application of domestic and foreign circuit breaker with high reliability and long life span.
- 2Consideration of electrical and mechanical stability with engineering design.
- 3Economical products with easy maintenance.
- 4Preservation of long life span with excellent blockage and input trait of circuit breaker and steadfast operating devices.
- 5With the excellent insulation restoration trait during the electric current blockage under high degree of vacuum state, its Arc period is less than 15ms.
- 6There is no lowering of the vacuum level and abrasion in the joints even with the long-term use of vacuum circuit breaker. It is excellent in blockage capacity has long mechanical life span.

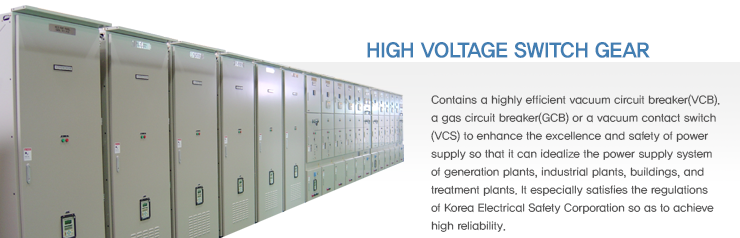

High Voltage Switch Gear
| Items | Bases | ||||
|---|---|---|---|---|---|
| Standards | IEC, BS | ESB | JEM | ||
| Rated Voltage [KV] | 3.6/7.2/12(15)/17.5/24/36 | 4.76/7.2/15/25.8 | 3.45/6.9/11.5/23/34.5 | ||
| Rated Bus Current [A] | 400, 600, 800, 1200, 1500, 2000, 25000, 3000, 4000 | ||||
| Rated Short-time Current (1s) [KA] |
8, 12.5, 20, 25, 31.5, 40 | ||||
| Rated Impulse Withstand Voltage (Maximum Volue) & Rated Withstand Voltage (Virtual Value) |
Voltage | 7.2KV | 12KV | 15KV(17.5KV) | 22.9KV(24/25.8KV) |
| BIL [KV] | 60(45)2) | 75 | 75(95)3) | 125 | |
| WithstandVoltage [KV] | 20(16)2) | 28 | 28(38)3) | 50 | |
