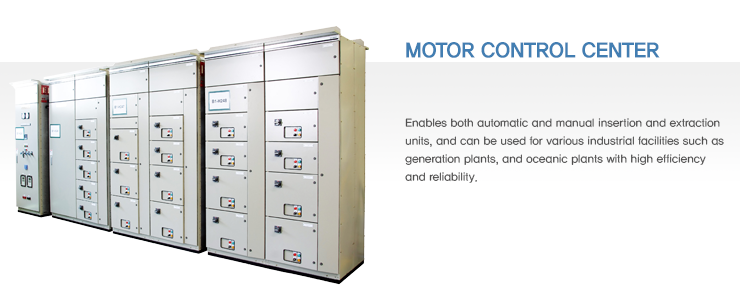

- 1Protection of driver from the main bus and prevention of short-circuit fault when withdrawing the automatic shutter installation unit.
- 2Secure electrical and structural stability with installation of partition between units.
- 3With the application of safety door locker, it safely releases the generated pressure in case of short-circuit fault.
- 4Horizontal and vertical bus bar is designed to endure considerable amount of rating short-circuit strength.
|Rated Insulation Voltage||AC 660V|
|Rated Control circuit Voltage||AC100V/110V, 200/220V|
|Rated Bus Current||Horizontal Bus||600 ~ 3000A|
|Vertical Bus||300 ~ 720A|
|Rated Bus Short-
time Current (1 s)
|Horizontal Bus||Maximum 83KA|
|Vertical Bus||Maximum 65KA|
|Cabinet||Structure||Indoor, outdoor, independent, wall-mounting
independent, plate-sided, double-sided
|Protection degree||IP 40 ~ 54|
|Size [mm]||Width xDepthxHeight
*600x600x2240 / *800x400x2240
*600x800x2240 / *800x(2x400)x2240
