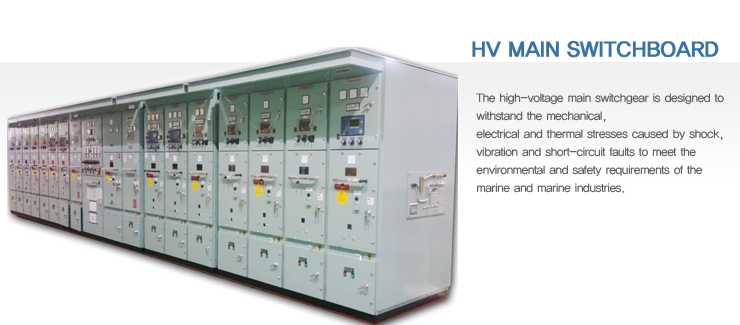

Luxco > Business > HV Main Switchboard
Rating and Technical Specification
| Type | METAL - CLAD |
|---|---|
| Rated Voltage | 6.6kV, 7.2KV, 12kV |
| Rated Current | 1250 A, 2000 A, 3150 A |
| Rated Frequency | 50/60 Hz |
Construction
| Frame Work | FORMED SHEET STEEL OR SUBSTANTIAL BOX-FRAME |
|---|---|
| Access | Front and Rear |
| Protection Degree | IP32 |
| Handrail | Front and Rear |
| Power Line Inlet | Bottom or Upper part of Rear(Upper part, Option) |
