SUPPLY SCOPE & WORK FLOW
SUPPLYING DETAIL
-
Full Package AMP
Retrofin Project- System Design
- Product supply
- Installation
- Commissiong
- Maintenance -
6.6KV Shore
connection
switch gear2 or 3 functional unit of AMP HVSB
- Rated V --------- 6.6KV
- Rated Capacity --- 2.5MVA
- Rated Frequency -- 60Hz
- Rated Short tiom withstand V
----------------- 25KA / 1sec
- Degree of protection – IP41 -
TransformerBASIC DATA - Phase, Frequency --- 3ph, 60Hz
- Rated Capacity ----- 2.5MVA
- Rated Voltage ------ 6600/440V
- Temperature class -- F
- Degree of protection - IP23
- Winding material ---- Aluminum -
Cable Reel
- Electric motor with encoder
- Cable.Guide roller
- Remote Control
- Transformer fiber opticalElectrical Motor with encoder
-------- 3.7KW, 440V, 60Hz, 4P
Transmitter fiber optical
- Multi Mode, 12core, 40turn
- Degree of protection – IP55
- Reeling cable ------- 185, 120sq
- Plug & Socket – Protection / 3PX5
PROJECT REQUIREMENTS
- 1. Electrical wiring diagram
- 2. Electric load analysis
- 3. Maker’s drawing of the Main Switch Board
- 4. GA of the vessel ( GA of Engine room, Engine control room, streering gear room inclusive)
- 5. Updated shot circuit current calculation
- 6. Information whether to use a port reel or rees(s) on board
- 6-A Cable Reel ON BOARD
- 6-B Using Port Cable Reel
PRODUCT CONFIGURATION
| Equipment | Capacity |
|---|---|
| Cable Reel | 185sq,120sq |
| Transformer | 3Ph, 450V/6600V, 4500KVA, F CLASS |
| 6.6KV Switch Board | 2.5MVA, AC6.6KV, 60Hz, 25KA/1sec |
CONTAINERIZED AMP TYPES
| Container Types | Equipment configuration | Type features |
|---|---|---|
| Type 1(IP56) |
Cable reel+TR+6.6 SWBD
|
Fully equipped |
| Type 2(IP56) |
Cable reel+6.6 SWBD
|
Requires options |
| Type 3(IP56) |
Cable reel
|
Requires options |
PACKAGED AMP TYPES
| ITEM | Port reel | AMP Reel Shelter |
AMP Reel No Shelter |
Remark |
|---|---|---|---|---|
| Shelter | N | Y | N | IP42 for shelter |
| Cable Reel | N | Y | Y | |
| Socket BOX | Y | N | N | For port reel use only |
| HV SWGR | Y | Y | Y | |
| Transformer | Y | Y | Y | |
| LV IN Panel | Y | Y | Y |
SIMPLIFIED CABLE REEL COMPARISON TABLE
| Items | LUXCO | Cavotec | Remarks |
|---|---|---|---|
| Motor controller | Inverter type | Hydraulic type | Inverter type enables More precise control of tensioning the cable |
| Cable | LS Cable  |
Partnered marker | 120sq * 3c + 35 * 2c + 2.5sq *10c + 12Fo * 40m ~ 50m |
| Socket & Plug | Proconent(FRA) The original standard |
Cavotec | All standard |
| Other Than Reel | - MSBD Modification - HV Panel, TR unit supply - Installation Commissioning |
- Mainly Cable Reel - Other equipment by agents, reps |
LUXCO : Full package or single unit equipment & service, based on customer requests |
TRANSFORMER
| Cast Resin TR | ||
|---|---|---|

|
Capacity | UP to 15MVA |
| Rated Voltage | UP to 36KV | |
| Ph. Frequency | 3PH, 50/60Hz | |
| Enclosure | IP 00 up to IP44 | |
| Cooling | AN, AF, Water Cooling | |
| Insulation Materials | Epoxy Resin, Inorganic filler | |
| Winding Materials | AL. Option CU | |
| Standards | IEC 60076, ANSI C57, NEMA ST-20 & all ship’s classification | |
| Dry Type TR | ||
|---|---|---|

|
Capacity | UP to 5MVA |
| Rated Voltage | UP to 11KV | |
| Insulation Materials | Varnish, Nomex, Mica | |
| Basic Insulation | Air Natual(AN) | |
| Winding Materials | CU standard, AL Option | |
| Standards | IEC 60076, ANSI C57. 12. 01, NEMA ST-20, KEPIC, CE | |
HIGH VOLTAGE SWITCHBOARD
- Designed to protection operator
- Prevent spareading damages caused by systematic failure
- Spatially efficient compact-chamber design
- Prevent spareading damages caused by systematic failure
- Spatially efficient compact-chamber design
AMP PLUG
|
Mechanical Characteristics |
|---|---|
|
- Marine grade housing, low magnesium & copper free alloy - Stainless steel fastening - Alloy copper, silver plated contact - Protection index between plug & socket IP67 - Pilot contact electrical interlocking |
|
| Electrical Characteristics | |
|
- Max insulation voltage -------- 7.2KV - AC withsatand with HD 629.1.S2 –17.1KV - Max current rating ----------- 350A - Contacts resistance ---------- 1mΩ - No. of poles ----------------- 3P+E+3P max - Cable terminal --------------- Crimp or solder - Potical fiber connection |
AMP SOCKET
|
Mechanical Characteristics |
|---|---|
|
- Marine grade housing, low magnesium & copper free alloy - Stainless steel fastening - Alloy copper, silver plated contact - Protection index between plug & socket IP67 - Pilot contact electrical interlocking |
|
| Electrical Characteristics | |
|
- Max insulation voltage -------- 7.2KV - AC withsatand with HD 629.1.S2 –17.1KV - Max current rating ----------- 350A - Contacts resistance ---------- 1mΩ - No. of poles ----------------- 3P+E+3P max - Cable terminal --------------- Crimp or solder - High voltage shore connection system with IEC 60092-510 - Shore connection with IEC Norm 80005-1/FDIS |

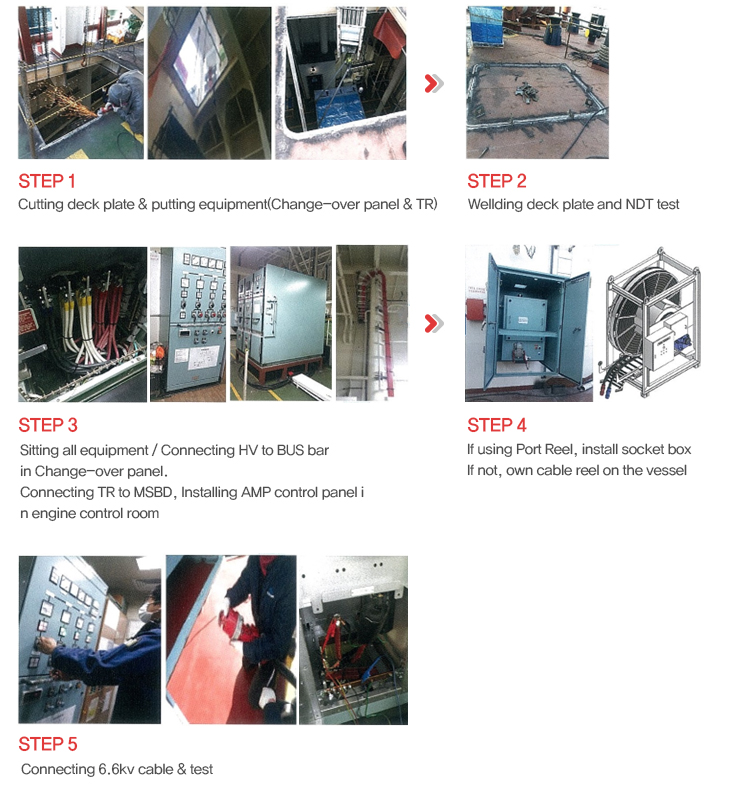

INSTALLATION EQUIPMENT
