Extra High Voltage Switchgear



  • 1 Contains highly reliable and durable domestic and foreign breakers.
  • 2Maximizes electrical and mechanical stability.
  • 3Economical and easy to maintain.
  • 4Highly durable with excellent breaking and closing characteristics.
  • 5Has an excellent insulation recovering characteristic on current vreaking in a high-vacuum state (less than 15 ms of arc period) .
  • 6 Has very low vacuum rate decline and wear of contacts with long-time use of the vacuum breaker, with highly efficient breaking and high mechanical durability.

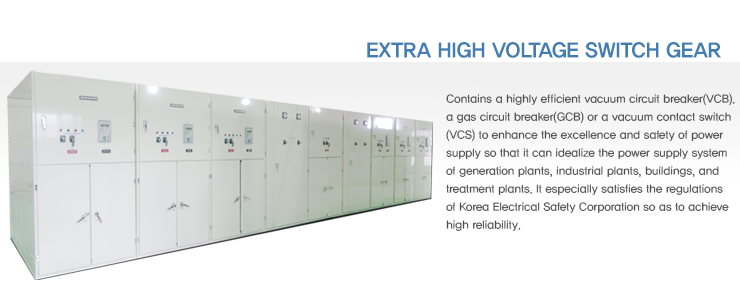

Extra High Voltage Switch Gear
Items Bases
Standards IEC, BS ESB JEM
Rated Voltage [KV] 3.6/7.2/12(15)/17.5/24/36 4.76/7.2/15/25.8 3.45/6.9/11.5/23/34.5
Rated Bus Current [A] 400, 600, 800, 1200, 1500, 2000, 25000, 3000, 4000
Rated Short-time
Current (1s) [KA]
8, 12.5, 20, 25, 31.5, 40
Rated Impulse Withstand
Voltage
(Maximum Volue) &
Rated Withstand Voltage
(Virtual Value)
Voltage 7.2KV 12KV 15KV(17.5KV) 22.9KV(24/25.8KV)
BIL [KV] 60(45)2) 75 75(95)3) 125
WithstandVoltage [KV] 20(16)2) 28 28(38)3) 50
