- 1Leading in and out of cables is possible at its upper and lower parts.
- 2The installation of an extra wire duct and the separation of the control terminal block from the power terminal block maximize safety and accessibility.
- 3Each starter unit is standardized according to the capacity of the motor and the control system so that switchboard additions and unit arrangements are east.

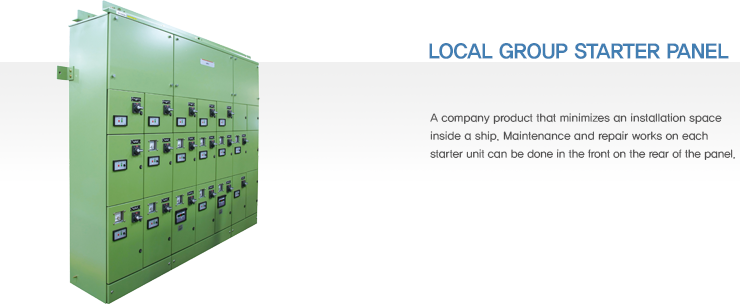

Local Group Starter Panel - Construction (Fixed type)
| Features | HGS7BB | HGS7BF | HGS7BW(Wall-Mounting) |
|---|---|---|---|
| Applicable Standard | IEC 60439-1,bs5486,VDE 0600-500 | ||
| Regulation | ABS,BV,DNV,GL,KR,LRS,NVE,RINA,NK,IEEE45 | ||
| Rated Voltage | 500V AC (Up to 690V AC, Option) | ||
| Themal Withstand | Up to 130k A rms/1 sec | ||
| Electronic Dynamic Withstand | Up to 330k A,ASYM,Peak | ||
| Frame Work | Formed sheet steel or substantial box-frame | ||
| Access | Front and Rear | Front | Front |
| Protection Degree | IP21 (Up to IP44) | ||
| Power Line Inlet | Bottom | Bottom / Upper | |
